Highlights

Field-based engineers need precise millimeter-wave (mmWave) measurements to advance modern wireless communications and radar systems. This precision is critical for 5G, 6G, aerospace and defense, and automotive radar transmission / receiving tests. Keysight FieldFox addresses this issue. It enables mmWave measurements in a lightweight, portable solution, when paired with the Keysight N9910XVDI frequency extender modules. This mmWave solution covers up to 90 GHz and beyond1, offering a viable and cost-effective tool for mmWave signal analysis in field and lab environments.

Key Benefits
  • Expanded frequency coverage: Expand FieldFox’s frequency coverage from as low as 18 GHz, depending on models, up to 90 GHz and beyond for signal analysis.
  • Optimized performance at the mmWave range: Support in-band signal analysis with the selection of spectrum analyzer mode, IQ analyzer mode, or real-time spectrum analyzer (RTSA) mode.
  • Cost efficient: Reduce costs by half or more compared to traditional mmWave signal analysis solutions using FieldFox and VDI frequency extenders.
  • Portable and convenient testing: Make mmWave field testing more feasible for field and lab environments using FieldFox with VDI frequency extenders, which together weigh less than 4 kg.
  • For detailed technical information refer to VDI PSAX web site.



Compatible FieldFox Models
        N9917A/B2, N9918A/B2, N9937A/B, N9938A/B, N9950A/B2, N9951A/B2, N9952A/B2, N9960A/B, N9961A/B, N9962A/B



1 For WR15 (50 to 75 GHz) and WR12 (60 to 90 GHz), order N9910XVDI-W15 and N9910XVDI-W12, respectively, under model number of N9910XVDI from Keysight. Beyond 90 GHz up to 170 GHz, order PSAX directly from VDI.

2 For the combo analyzers, spectrum analyzer option (option 233) is required.

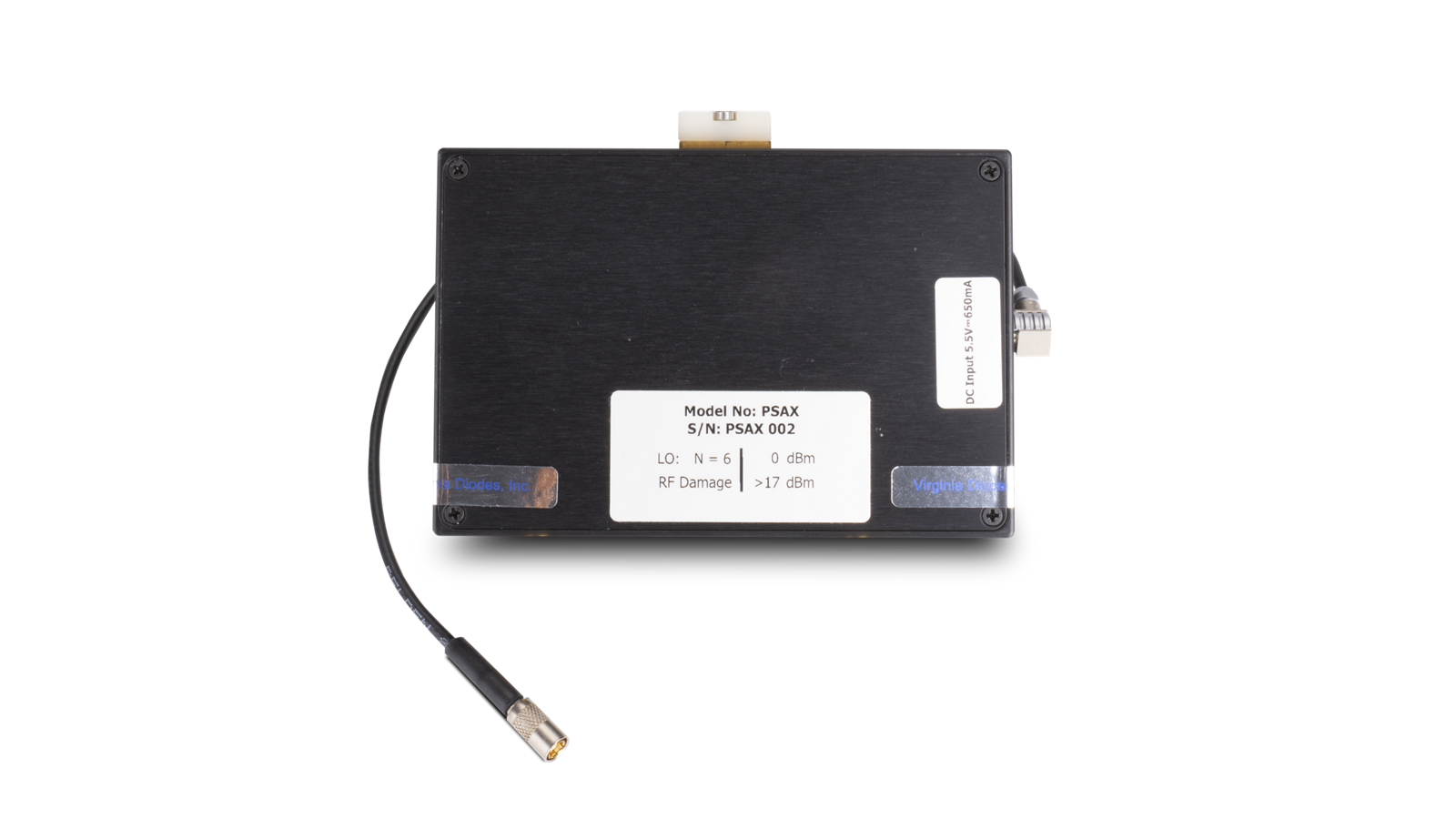

FieldFox with VDI frequency extender

Interested in an N9910XVDI?

Featured Resources for the N9910XVDI  mmWave Frequency Extenders

Data Sheets 2025.03.11

N9910XVDI Millimeter-Wave Frequency Extenders for FieldFox Handheld Analyzers

This datasheet provides an overview of the key performance and features of the Keysight 85573A single-channel direction finding antenna.

2025.03.11

Reference Guides 2025.01.02

Keysight Technologies N9910XVDI Product Note

The Keysight N9910XVDI-W15 (50-75 GHz) and N9910XVDI-W12 (60-90 GHz) are Portable Spectrum Analyzer Extension (PSAX) modules from Virginia Diodes Inc. (VDI). These VDI PSAX modules extend the frequency capabilities of the Keysight FieldFox analyzer, enabling coverage of the 50 GHz to 90 GHz range. Both models feature a 2.92 mm (F) input connector and are designed for use with the N9917A/B, N9918A/B, N9937A/B, N9938A/B, N9950A/B, N9951A/B, N9952A/B, N9960A/B, N9961A/B, and N9962A/B FieldFox analyzer models.

2025.01.02

Configuration Guides 2025.07.31

FieldFox Handheld Analyzers 4/6.5/9/14/18/26.5/32/44/50/54 GHz (B and C models)

This comprehensive handheThe FieldFox handheld analyzer configuration guide provides the potential customers to correctly pick the model and options to best fit their needs in technically and economically. By adding the new information of newly introduced C-Series FieldFox handheld analyzers (Code name Earhart) configuration information, customers can make their best purchase decision on the new C-Series FieldFox and upgrading their existing C-Series FF in later days.

2025.07.31

Configuration Guides 2025.05.23

FieldFox Handheld Analyzers

This is a configuration guide to help potential customers structure an N99xxA FieldFox to best fit their applications.

2025.05.23

Data Sheets 2025.07.16

FieldFox B-Series Handheld Analyzers

The FieldFox datasheet update includes new B model versions.

2025.07.16

Data Sheets 2025.07.21

FieldFox A-Series Handheld Analyzers 4/6.5/9/14/18/26.5/32/44/50 GHz

This document is the FieldFox Data Sheet

2025.07.21
