How to Test an Automotive Battery Management System

Get quote

View application note

+ Bench Power Supply

Simulating battery loads and cells to test an automotive BMS

Testing an automotive battery management system (BMS) requires accurately simulating and monitoring key battery parameters such as voltage, current, and temperature across individual cells. To assess performance under real-world conditions, engineers must perform load testing using programmable DC loads and battery simulators. These tools replicate various dynamic load profiles, enabling the verification of the system's response to power demands, protection mechanisms (including overvoltage, undervoltage, and overcurrent), and cell balancing capabilities.

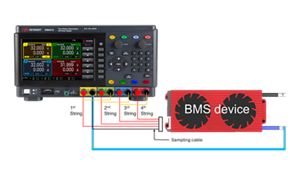

To evaluate auto-balancing functionality, each cell’s behavior within a battery pack is tested for variations in capacity, internal resistance, and state of charge. A multi-channel DC bench power supply simulates the battery cells, with each channel set to voltage and current values that represent real-world conditions. The LIST mode is used to program voltage imbalances over time, which triggers and validates the system’s balancing actions to ensure proper operation.

Automotive BMS test solution

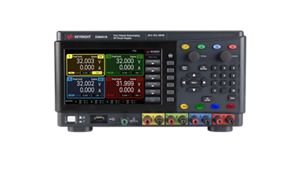

Verifying the functionality of an automotive battery management system requires accurate simulation of real-world battery cells. The Keysight Smart Bench Essentials Plus DC power supply features four isolated channels for precise and simultaneous cell simulation. It delivers 400 W of total power (160 W / 32 V / 10 A each output) and responds quickly to dynamic load changes with fast transient performance. LIST mode enables programming a sequence of voltage levels at defined intervals to create voltage imbalances over time. The built-in data logger captures these fluctuations in real time, confirming both the detection and correction of imbalances by the battery management system. This setup provides a simple, compact, and reliable solution for validating voltage monitoring, passive balancing, and protection features.
